Beryllium Copper Plate Stockist, Beryllium Copper Sheet Manufacturers, Suppliers & Traders in Mumbai, Beryllium Copper Strips

C17200 Beryllium Copper Plate, C17200 Beryllium Copper Strips, C17200 Beryllium Copper Coils, C17200 Beryllium Copper Foils, C17200 Beryllium Copper Plate & C17300 Beryllium Copper Plates in India

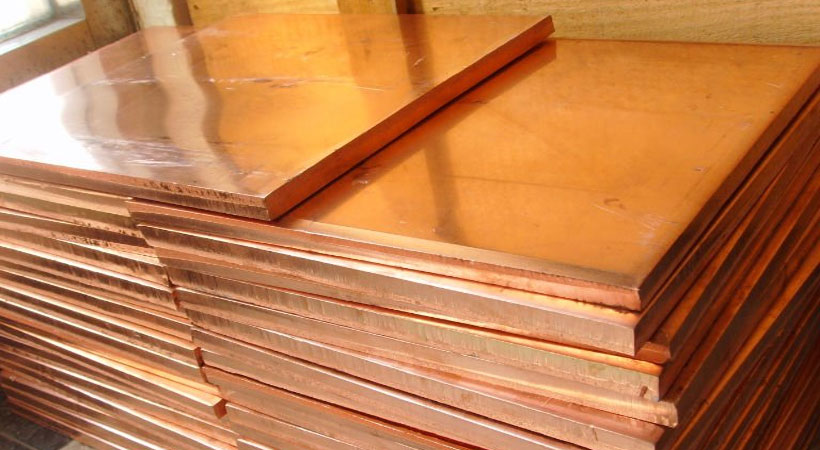

MD Exports LLP maintains an inventory of C17200 Beryllium Copper Plate and Strip. Beryllium Copper Plate primary characteristics are the excellent response to precipitation-hardening treatments, excellent thermal conductivity and resistance to stress relaxation. The commercial grades of Beryllium Copper Sheet contain from 0.4 to 2.0 % beryllium.

Beryllium Copper Plate Specification

Standard ASTM, ASME and API
Specialize Shim Sheet, Perforated Sheet, B. Q. Profile.
Size 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH
Form Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Specialized in C17200 Beryllium Copper Plate
C17300 Beryllium Copper Plate

Beryllium Copper Plate Price in India

Sizes in Inch

0.375" Beryllium Copper 1/8-1/4 HARD PLATE

12 x 12 Beryllium Copper Plate Price – $185.88
12 x 24 Beryllium Copper Plate Price – $321.71
12 x 36 Beryllium Copper Plate Price – $482.59
12 x 48 Beryllium Copper Plate Price – $643.47
24 x 24 Beryllium Copper Plate Price – $643.47
24 x 36 Beryllium Copper Plate Price – $911.57

0.5" Beryllium Copper 1/8-1/4 HARD PLATE

12 x 12 Beryllium Copper Plate Price – $238.32
12 x 24 Beryllium Copper Plate Price – $428.98
12 x 36 Beryllium Copper Plate Price – $606.86
12 x 48 Beryllium Copper Plate Price – $810.28
24 x 24 Beryllium Copper Plate Price – $810.28

0.625" Beryllium Copper 1/8-1/4 HARD PLATE

12 x 12 Beryllium Copper Plate Price – $286.44
12 x 24 Beryllium Copper Plate Price – $515.60
12 x 36 Beryllium Copper Plate Price – $730.17
12 x 48 Beryllium Copper Plate Price – $916.61
24 x 24 Beryllium Copper Plate Price – $916.61

0.75" Beryllium Copper 1/8-1/4 HARD PLATE

12 x 12 Beryllium Copper Plate Price – $343.74
12 x 24 Beryllium Copper Plate Price – $584.34
12 x 36 Beryllium Copper Plate Price – $823.80
12 x 48 Beryllium Copper Plate Price – $1,099.94

Types & Grades of Beryllium Copper Plate

C17200 COPPER BERYLLIUM ALLOY

UK: CuBe2, Alloy 25
EU: (France)Alliage25-CuBe1.9, CuBe2-NFL14721

C17300 COPPER BERYLLIUM (ALLOY M25)

UK: Alloy M25
EU: Alliage M25

C17510 COPPER BERYLLIUM (MATERION / BRUSH WELLMAN ALLOY 3)

UK: Alloy 3, CuNi2Be
EU: (France) Alliage 3

HIGH HARD & LOW HARD

UK: High Hard / Low Hard CuBe Mold Alloy

PROTHERM COPPER BERYLLIUM

UK: Protherm
EU: Protherm

Beryllium Copper Plate Application:

  • Beryllium Copper Plate for Electrical Switch and Relay Blades
  • Beryllium Copper Plate is suitable for Electrical connectors
  • Beryllium Copper Plate for Non-Sparking Safety Tools
  • Beryllium Copper Plate for Pump Parts
  • Beryllium Copper Plate for Bushings/Bearing for Aerospace Industry
  • Beryllium Copper Plate for Oil Field Drilling Collars and Instrument Housing
    Springs

Beryllium Copper Plate Chemical Composition

(%max., unless shown as range or min.)



Cu(1)

Al

Be

Co(2)

Si

Min./Max.

Rem.

.20

1.80-2.00

.20 min

.20

Nominal

98.1

1.90

Berylco Product UNS Alloy Chemistry
Plus C17510 Be
Ni
Cu
0.20 – 0.60

1.40 – 2.20

Balance

Supra
Ultra
C17200 Be
Ni+Co
Ni+Co+Fe
Cu
1.80 – 2.00
0.20 min.
0.60 max.

Balance
Typical Properties
Berylco Product Thermal Conductivity
BTU/(ft. x hr. x °F) @ 68°F
Coefficient of Thermal
expansion 68°F to 390°F
Modulus of elasticity
(psi)
Hardness Rockwell
(B or C scale)
Tensile Strength*
(ksi)
Elongation*
Plus 145 10.0 x 10-6 192. x 106 B95 – 102 115 7%
Supra 75 9.7 X 10-6 18.5 x 106 C25 – 32 170 15%
Ultra 60 9.7 X 10-6 18.5 x 106 C36 – 42 182 3%
* For reference only – Material supplied & certified to hardness values only.
Beryllium Copper Plate Processing

The majority of normal processing can be performed on Beryllium Copper Plate

MD Exports LLP Offers Following process for Beryllium Copper Plate
Beryllium Copper Plate Packing & Shipping

Beryllium Copper Plate StockistEach order is packaged according to the customer’ s standards including preparation for export such as wooden case, pallet or according to customer’s requirement All shipping documentation is provided for Beryllium Copper Plate delivery from mill to customer.

Every assignment begins with a visit of our experienced sales representative who assesses the volume / weight of the belongings and brief the client about the nature of packing required as well as various documentation formalities when moving from India.

Supply Area :

We Supply Our Beryllium Copper Plate to various countries like Saudi arabia, Kuwait, Qatar, Oman, Yemen, UAE, Iran, Turkey, Kazakhstan, Greece, Singapore, Thailand, Indonesia, Vietnam, South Africa,South America,Brazil, India, Australia, Egypt.

Beryllium Copper Plate Inventory

Beryllium Copper Plate Application Industries

MD Exports LLP offers a broad range of Beryllium Copper Plate through a worldwide network of stock-keeping branches.these Beryllium Copper Plate is use in various industries like:

  • Fertilizers Industry
  • Aerospace Industry
  • Nuclear Power Plant Industry
  • Chemical Industry
  • Oil & Gas Industry
  • Refineries Industry
  • Petrochemical Industry
  • Paper Industry

MD Exports LLP inc is largest suppliers of Beryllium Copper Plate. we are supplying Beryllium Copper Plate in Saudi arabia, Kuwait, Qatar, Oman, Yemen, UAE, Iran, Turkey, Kazakhstan, Greece, Singapore, Thailand, Indonesia, Vietnam, South Africa,South America,Brazil, India, Australia, Egypt.we assured our client that we are standing behind our product which we have supplied as well as we issued a quality certificate along with our product which we manufacture supplies and exports
